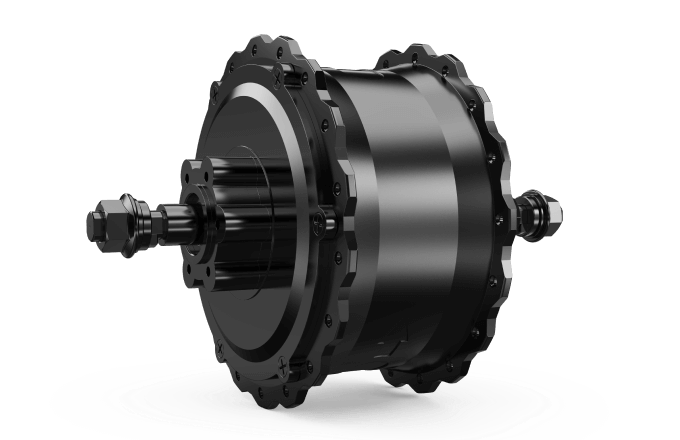

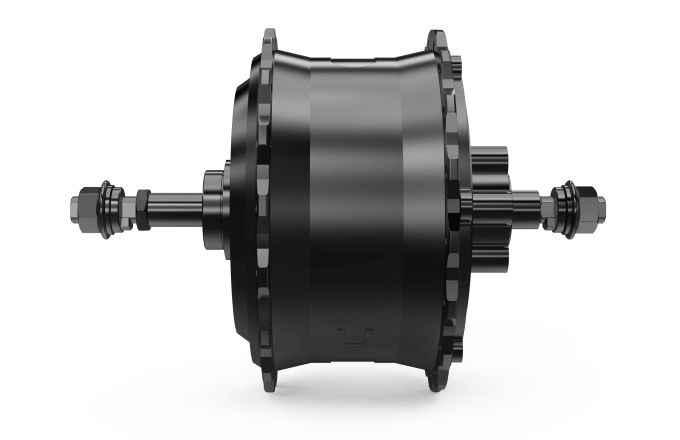

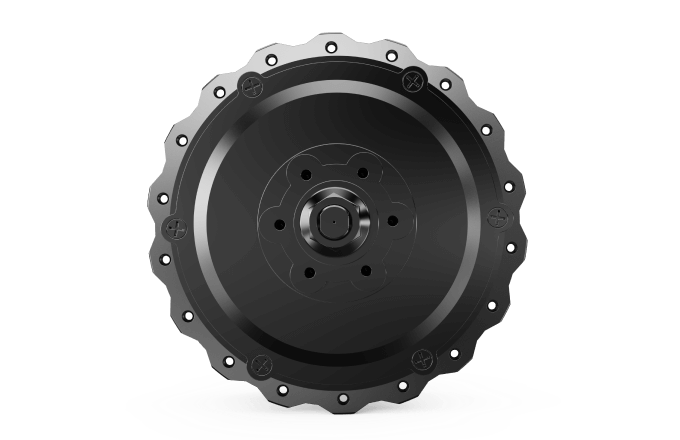

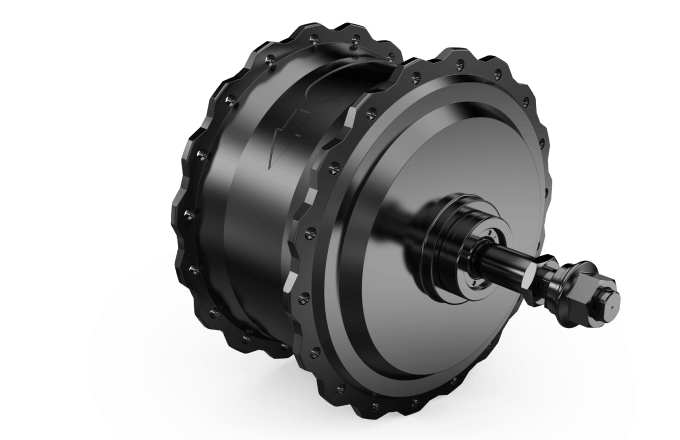

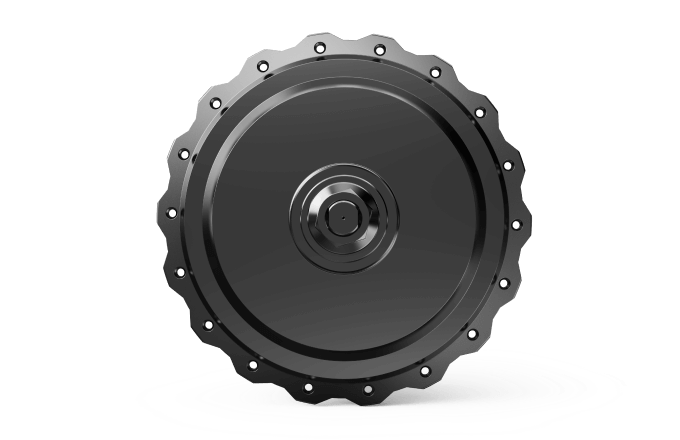

TBR753A

750W strong power: High power output combined with 80Nm torque easily handles steep slopes over 15°, gravel roads, and heavy loads..

Exceptional shock resistance: Steady performance with quick acceleration response ensures a stable riding experience in various complex conditions.

Intelligent torque adjustment: Precisely adjusts the torque output curve through an electronic control system, flexibly adapting to various terrain riding modes.

High reliability in extreme conditions: The system performs reliably in harsh environments like snow and gravel, ensuring that riders can ride with peace of mind.

Parameter

Rated Power
750W

Max Speed
45km/h

Max Torque
≥80N.m
See more
Consult now >
  • Model No.
  • TBR753A
  • Position
  • Rear Motor
  • Senario
  • eFat, eCargo
  • Dimensions/Size
  • Size(mm):A/B/C
  • 95.5/72/158
  • Size(mm):D/E/F
  • 145/ M12/7
  • Size(mm):G/H
  • 15.5/38.5
  • WL/WR(mm)
  • 80.5/94.5
  • OLD(mm)
  • 175
  • Core Parameters
  • Wheel Size (Inch)
  • 20-29
  • Nominal Voltage (Vdc)
  • 48
  • Rated Power (W)
  • 750
  • Max Speed (km/h)
  • 45
  • Max Torque (N.m)
  • ≥80
  • Color
  • Black
  • Weight (kgs)
  • 4.1
  • Mounting Parameters
  • Brake
  • Disc-Brake
  • Cabling Route
  • Shaft Side_Left
  • Cable Length(mm), Connection Type
  • 250 G9.6
  • Spoke Specification
  • 36H*13G
  • Sprocket Wheel
  • 5-7
  • Tests & Certifications
  • IPX5 ROHS / CE/UL2849
