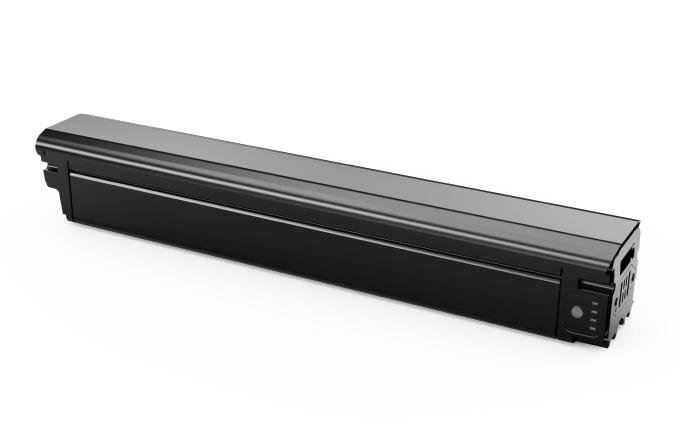

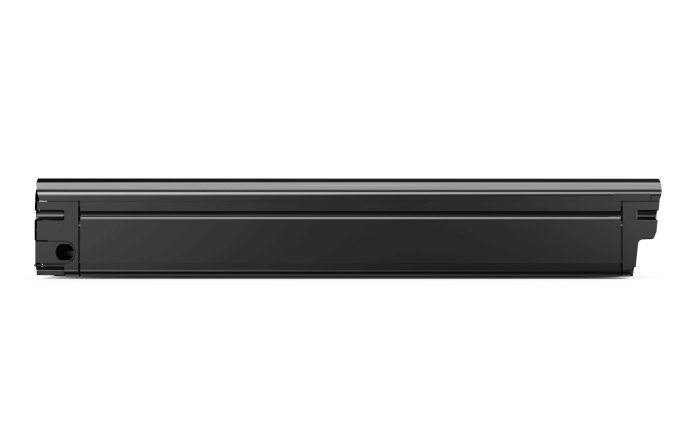

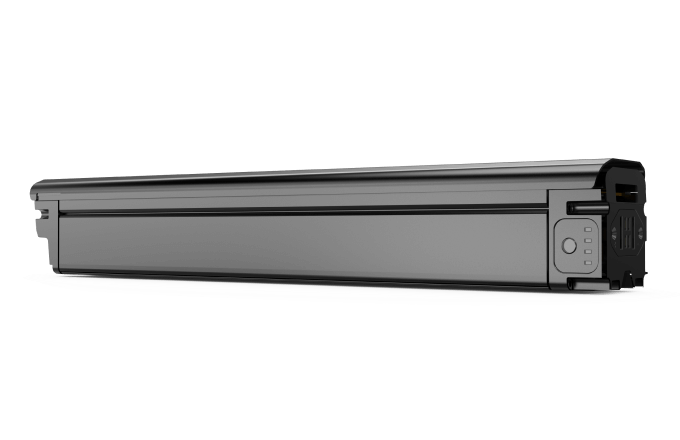

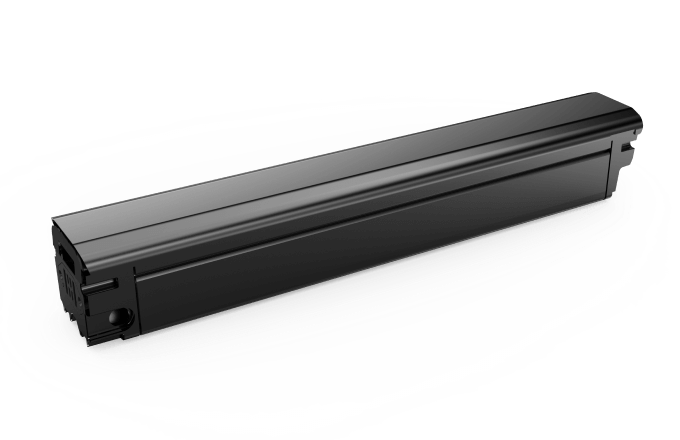

IT2

High-strength aluminium-magnesium alloy casting shell, small size and light weight.

Highly integrated controller

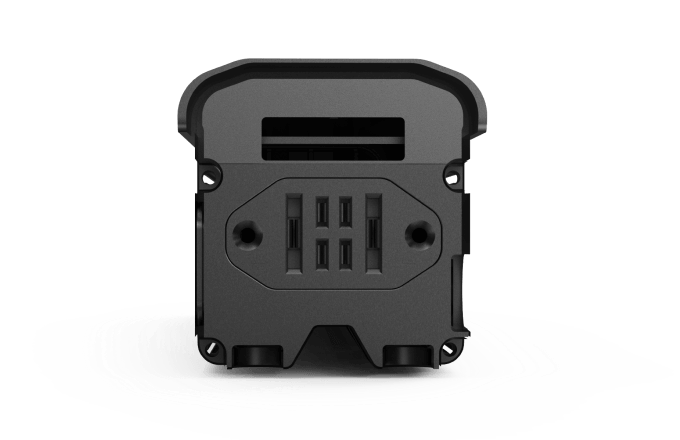

Ergonomic side outlet installation design, more convenient for installation and maintenance.

Parameter

Rated Power
250W

Max Speed
25km/h

Max Torque
8.5N.m
See more
Consult now >
  • Model Name
  • IT2
  • Cells
  • 18650（3.5Ah)
  • Pack Construction
  • 10S4P
  • Rated Voltage
  • 36V
  • Rated Capacity
  • 14Ah
  • Energy Content Approx
  • 504Wh
  • BMS
  • Smart / Standard
  • Communication Protocol
  • CAN / UART
  • Certifcation
  • EN 15194:2017 / EN50604 / UN38.3 / ISO13849 / CE / ROHS
  • BatteryDimension (L*W*H)
  • 410mm×71mm×64mm
  • IP Grade
  • >IPX6
  • Core Data
  • Wheel Size (Inch)
  • 20-29
  • Nominal Voltage (Vdc)
  • 36
  • Rated Power (W)
  • 250
  • Speed Limit (km/h)
  • 25
  • Max Effective Torque*(N.m)
  • 60
  • Peak Torque (N.m)
  • 85
  • Pedal Sensor
  • Cadence & Torque
  • Shaft Standard
  • ISIS
  • Color
  • Black
  • Weight (kg)
  • 2.4
  • Function
  • Smart mode
  • Yes
  • E-Brake
  • Optional
  • Light Drive Capacity(Vdc/w)
  • 36 / 3
  • Tests & Certifications
  • IP65 CE/UKCA/EN14766/ROHS
